IPTime FBB Solution Course Objectives

Upon completion of IPTime FBB Solution course, you will be able to learn about:
Service types supported by the FBB solution
HSI service configuration
VoIP service configuration
IPTV service configuration
Enterprise Internet service configuration
Enterprise Interconnection service configuration

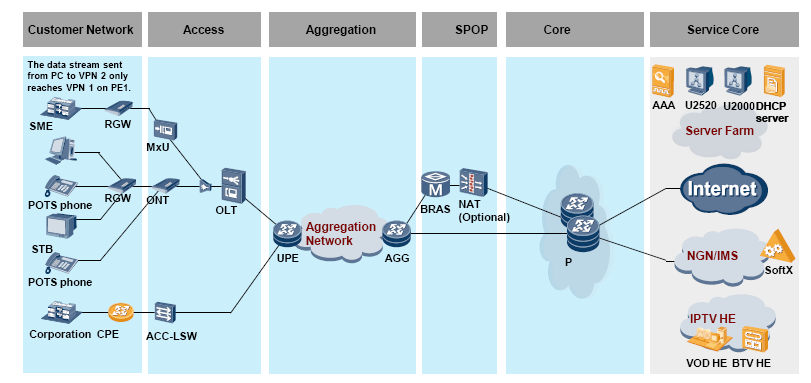

Typical FBB Networking :

The network FBB solution is an overall solution for the entire bearer network, including the access layer, convergence layer, SPOP, backbone layer, transport layer, and the NMS.
-FBBV100R001C00 is an integrated version, which is used for triple play services. This FBB solution is proposed based on product capabilities and the experience obtained from the projects such as MAXIS and TM.
-The bearer network uses a Layer 3 to edge solution that supports any topology and the Layer 2/Layer 3 hybrid scheme.

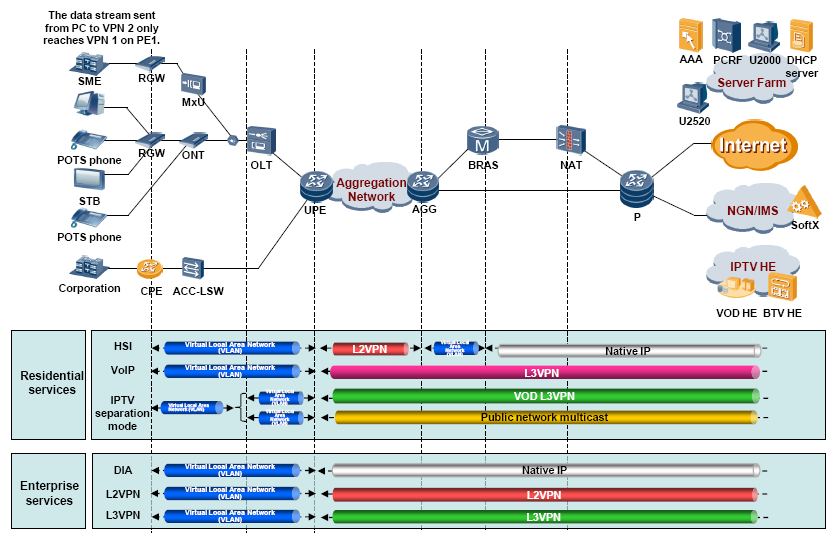

FBB Service Overview :



Basic Network Configurations :

Configure Interfaces and Links
Configure GPON Access for an OLT
(Optional) Configure RRPP or MSTP
Configure IP Addresses
Configure IGP Routes
Configure BGP Routes
Configure Basic MPLS Functions

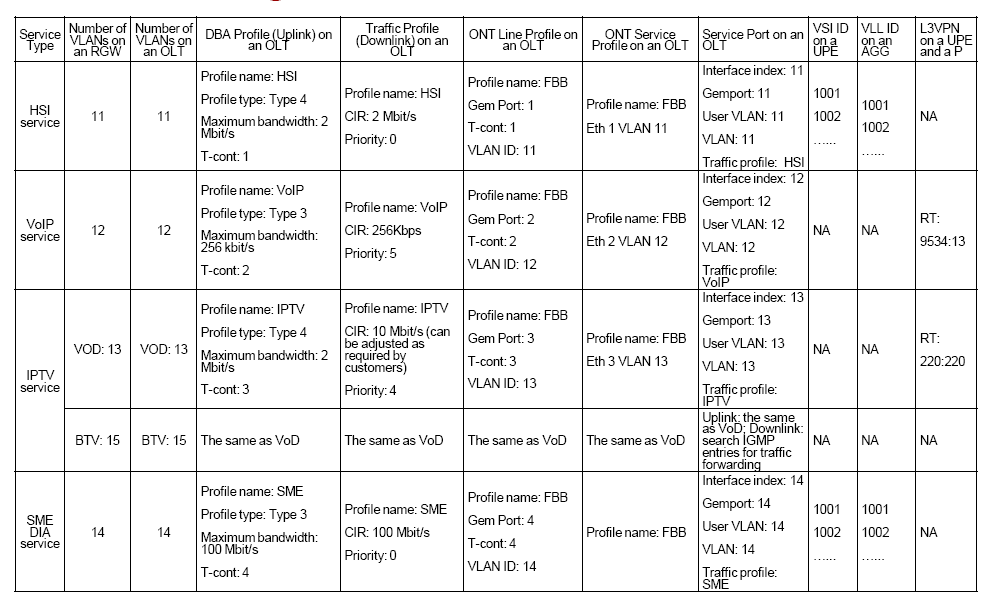

General Configuration Plan :

HSI Service Configuration :

1.1 Introduction
1.2 Configuration Roadmap
1.3 Configure Basic HSI Services
1.4 Configure HSI Service Reliability
1.5 Verify HSI Services

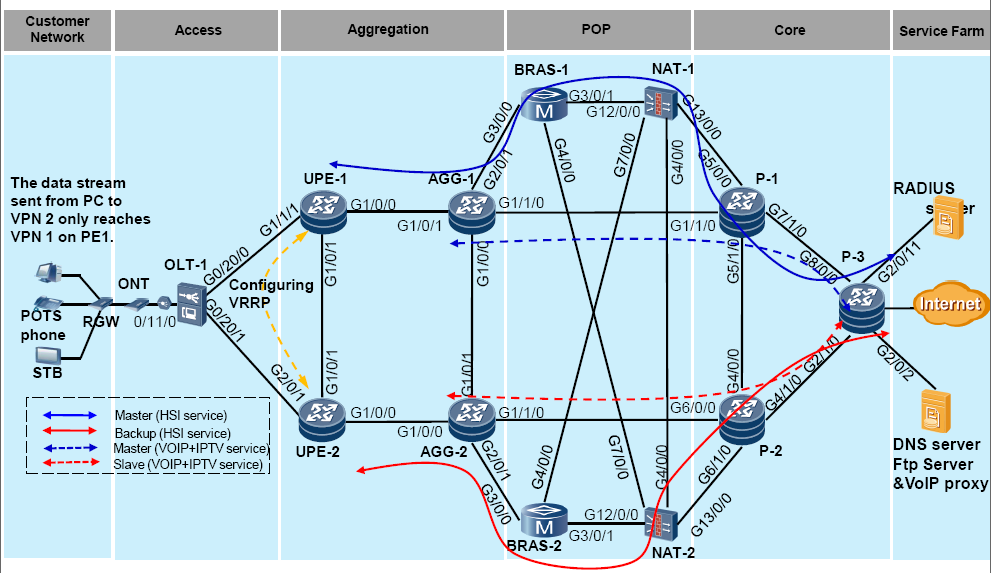

Typical Networking for Tripleplay Services:

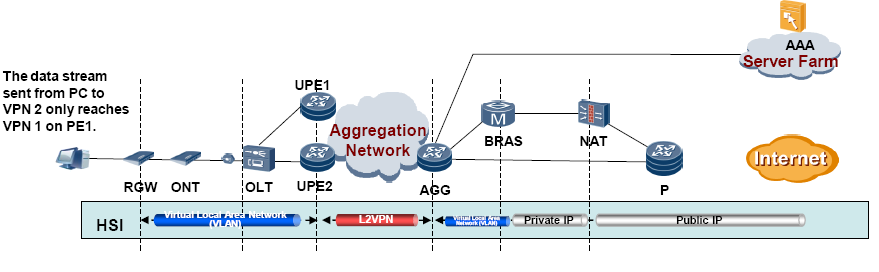

Introduction to HSI Services:



HSI services are provided using PPPoE. The RGW initiates PPPoE dial-up, and the metro aggregation network transparently transmits HSI services over an L2VPN to the BRAS.
The BRAS terminates HSI user packets, and performs remote AAA authentication on HSI users, allocates IP addresses to HSI users from a local IP pool. If the BRAS allocates private IP addresses, the NAT device needs to translate the private IP addresses into public IP addresses.

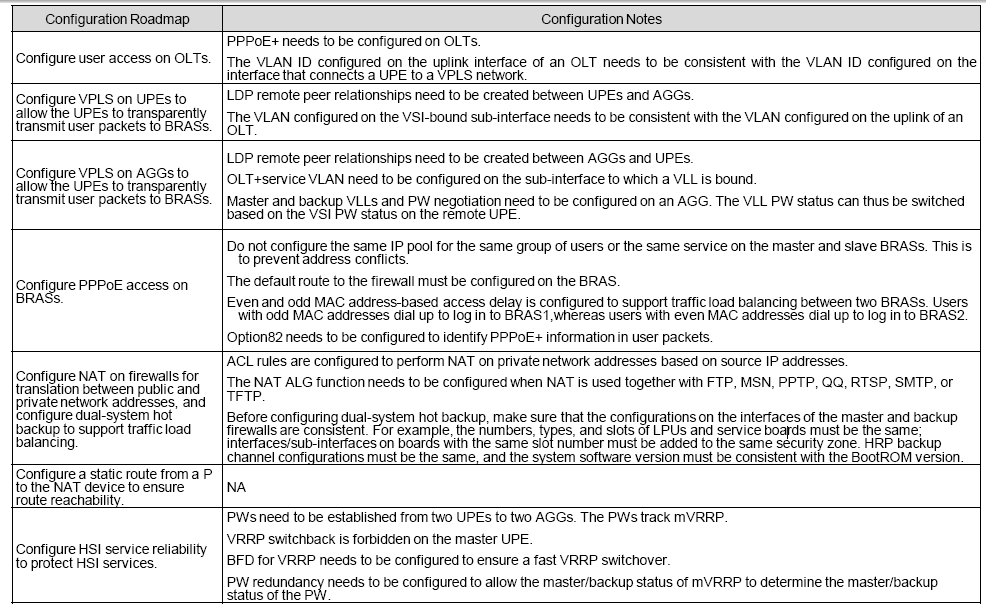

Configuration Roadmap :

Configure Basic HSI Services :

• Configure user access on an OLT. (1/2)
  Configure a VLAN on the uplink interface and a VLAN for transparently transmitting VRRP packets.
  Configure a DBA profile. MA5600T(config)# dba-profile add profile-name HSI type4 max 2048
  Configure a GPON line profile and a GPON service profile.
  Configure the ONT auto discovery function. MA5600T(config-if-gpon-0/11)# port 0 ont-auto-find enable
  Check the ONT status and record the ONT SN. MA5600T(config-if-gpon-0/11)#display ont autofind 0 The command output shows the SN of the ONT that registers with GPON 0/11/0 on the OLT. You can use the obtained SN to add an ONT.
• Configure user access on an OLT. (2/2):
  • Add ONT nodes. MA5600T(config-if-gpon-0/11)# ont add 0 2 sn-auth “485754438BD3B002” omci ont-lineprofile-name FBB ont-srvprofile-name FBB desc FBB
    Create service flows.

OLT(config)# service-port 11 vlan 11 gpon 0/11/0 ont 2 gemport 11 multi-service user-vlan 11 inbound traffic-table name HSI outbound traffic-table name HSI
Configure PPPoE+.

OLT(config)# pitp enable pmode

OLT(config)# pitp service-port 11 enable

By default, PPPoE+ is disabled.

Configure VPLS on UPEs and VLL on AGGs.

Configure remote LDP sessions between UPEs.
Configure VPLS (VSI ID is 1002) on UPE1 and bind the VSI to the sub-interface that connects to an OLT. The configuration on UPE2 is similar and the VSI ID on UPE2 is set to 1002.

[UPE-1] vsi fbb-hsi static

[UPE-1-vsi- fbb-hsi] pwsignal ldp

[UPE-1-vsi- fbb-hsi-ldp] vsi-id 1001

[UPE-1-vsi- fbb-hsi-ldp] peer 58.71.228.1

[UPE-1-vsi- fbb-hsi-ldp] peer 58.71.228.4

[UPE-1-vsi-fbb-hsi-ldp]]peer 58.71.228.1 track admin-vrrp interface GigabitEthernet 1/1/1.10 vrid 10 pw-redundancy

[UPE-1-vsi-fbb-hsi-ldp]]peer 58.71.228.4 track admin-vrrp interface GigabitEthernet 1/1/1.10 vrid 10 pw-redundancy

Configure master and backup VLLs on AGG1 and configure a switchover policy.

[AGG-1 interface gigabitethernet 2/0/0.11

[AGG-1-GigabitEthernet2/0/0.11] vlan-type dot1q 11

[AGG-1-GigabitEthernet2/0/0.11] mpls l2vc 58.71.228.7 1001

[AGG-1-GigabitEthernet2/0/0.11] mpls l2vc 58.71.228.9 1002 secondary

[AGG-1-GigabitEthernet2/0/0.11] mpls l2vpn reroute immediately-switch

Configure master and backup VLLs on AGG1 and configure a switchover policy.

[AGG-1 interface gigabitethernet 2/0/0.11

[AGG-1-GigabitEthernet2/0/0.11] vlan-type dot1q 11

[AGG-1-GigabitEthernet2/0/0.11] mpls l2vc 58.71.228.7 1001

[AGG-1-GigabitEthernet2/0/0.11] mpls l2vc 58.71.228.9 1002 secondary

[AGG-1-GigabitEthernet2/0/0.11] mpls l2vpn reroute immediately-switch

 Configure user access on BRASs.

Configure a virtual template (VT) interface.
Configure IP pools on the BRASs. (The IP pool on BRAS1 is different from that on BRAS2.)

[BRAS-1] ip pool fbb_private bas local

[BRAS-1-ip-pool-fbb_private] gateway 10.201.0.1 255.255.255.0

[BRAS-1-ip-pool-fbb_private] section 0 10.201.0.2 10.200.0.254

Configure an authentication scheme for HSI services.
Configure an accounting scheme for HSI services.
Configuring the RADIUS authentication/accounting server.
Configure an HSI service domain.
Configure BAS interfaces.
Configure even and odd MAC address-based access delay on BAS interfaces.

[BRAS-1-GigabitEthernet3/0/0.11-bas]access-delay 500 even-mac (Even MAC-based access delay)

[BRAS-2-GigabitEthernet3/0/0.11-bas]access-delay 500 odd-mac (Odd MAC-based access delay)

[BRAS-2-GigabitEthernet3/0/0.11-bas]client-option82

Configure default routes from the BRASs to the NAT device.

[BRAS-2]ip route-static 0.0.0.0 0.0.0.0 172.16.1.1

[BRAS-2]ip route-static 0.0.0.0 0.0.0.0 172.16.2.1

Configure firewall NAT

Add interfaces to firewall zones. Add HRP backup channel interfaces to the demilitarized zone (DMZ).

[NAT-1]firewall zone trust

[NAT-1-zone-trust] add interface GigabitEthernet12/0/0

[NAT-1-zone-trust] add interface GigabitEthernet7/0/0

[NAT-1]firewall zone untrust

[NAT-1-zone-untrust] add interface GigabitEthernet13/0/0

[NAT-1]firewall zone dmz

[NAT-1-zone-untrust] add interface GigabitEthernet4/0/0

Add uplink and downlink interfaces on NAT-1 to a link-group.

[NAT-1]interface GigabitEthernet12/0/0

[NAT-1-GigabitEthernet12/0/0]link-group 1

[NAT-1-GigabitEthernet12/0/0]quit

[NAT-1]interface GigabitEthernet13/0/0

[NAT-1-GigabitEthernet13/0/0]link-group 1

[NAT-1-GigabitEthernet13/0/0]quit

[NAT-1]interface GigabitEthernet7/0/0

[NAT-1-GigabitEthernet7/0/0]link-group 1

[NAT-1-GigabitEthernet7/0/0]quit

Configure VRRP backup groups on NAT-1.

[NAT-1]interface GigabitEthernet4/0/0

[NAT-1-GigabitEthernet4/0/0]vrrp vrid 1 virtual-ip 192.168.7.10 master

[NAT-1-GigabitEthernet4/0/0]quit

 On NAT-1, configure the range of the ports that can be used by a NAT address pool to 2000-33767.

[NAT-1]hrp nat ports-segment primary

Configure an HRP backup channel on NAT-1.

[NAT-1]hrp interface GigabitEthernet4/0/0

Enable HRP on NAT-1.

[NAT-1]hrp enable

Configure NAT-2. The configurations on NAT-2 are similar to those on NAT-1. The differences are as follows:

•If NAT-1 is configured to be a master device in a VRRP backup group, NAT-2 must be configured to be a backup device.
•Run the hrp nat ports-segment secondary command on NAT-2 to configure the range of the ports that can be used by the NAT address pool to 33768-65535.

Run the following command on NAT-1 to enable auto-synchronization of configurations. This allows the configurations (including the NAT address pool, ACLs, and packet filtering rules) on NAT-1 to be automatically synchronized to NAT-2. HRP_M[NAT-1]hrp auto-sync config



Configure a public address pool only on NAT-1.

HRP_M[NAT-1]nat address-group 1 204.38.160.2 204.38.160.254



 Configure ACLs to differentiate private network traffic.

HRP_M[NAT-1]acl number 2000

HRP_M[NAT-1-acl-basic-2000]rule 5 permit source 10.201.0.0 0.0.0.255

HRP_M[NAT-1-acl-basic-2000]rule 10 permit source 10.200.0.0 0.0.0.2

Configure NAT.

HRP_M[NAT-1]firewall interzone trust untrust

HRP_M[NAT-1-interzone-trust-untrust] packet-filter 2000 outbound

HRP_M[NAT-1-interzone-trust-untrust]nat outbound 2000 address-group 1

Configure NAT ALG.

HRP_M[NAT-1-interzone-trust-untrust] detect ftp

Configure a static route to the public network. The static route must be configured manually on NAT-2.

HRP_M[NAT-1]ip route-static 0.0.0.0 0.0.0.0 58.71.231.234

Configure static routes to BRASs.

Configure NAT-1.

HRP_M[NAT-1]ip route-static 10.201.0.0 255.255.255.0 GigabitEthernet12/0/0 123.1.1.2

HRP_M[NAT-1]ip route-static 10.200.0.0 255.255.255.0 GigabitEthernet7/0/0 176.1.2.2

Configure NAT-2.

HRP_S[NAT-2]ip route-static 10.201.0.0 255.255.255.0 GigabitEthernet7/0/0 123.1.2.2

HRP_S[NAT-2]ip route-static 10.200.0.0 255.255.255.0 GigabitEthernet12/0/0 176.1.1.2

Configure static routes on Ps to NAT devices.

Configure P-1.

[P-1]ip route-static 204.38.160.0 255.255.255.0 58.71.231.233

Configure P-2.

[P-2]ip route-static 204.38.160.0 255.255.255.0 58.71.231.245

Configure HSI Service Reliability



Configure BFD on UPEs.
Configure mVRRP on UPEs.
[UPE-1]interface GigabitEthernet1/1/1.10
[UPE-1-GigabitEthernet1/1/1.10] ip address 196.1.1.1 24
[UPE-1-GigabitEthernet1/1/1.10] vrrp vrid 10 virtual-ip 196.1.1.100
[UPE-1-GigabitEthernet1/1/1.10] admin-vrrp vrid 10
[UPE-1-GigabitEthernet1/1/1.10] vrrp vrid 10 preempt-mode disable
[UPE-1-GigabitEthernet1/1/1.10] vrrp vrid 10 track bfd-session 8001 peer
[UPE-1-GigabitEthernet1/1/1.10] vrrp vrid 10 priority 150
[UPE-2]interface GigabitEthernet2/0/1.10
[UPE-2-GigabitEthernet2/0/1.10] ip address 196.1.1.2 24
[UPE-2-GigabitEthernet2/0/1.10] vrrp vrid 10 virtual-ip 196.1.1.100
[UPE-2-GigabitEthernet2/0/1.10] admin-vrrp vrid 10
[UPE-2-GigabitEthernet2/0/1.10] vrrp vrid 10 track bfd-session 8002 peer

Bind PWs on the UPE with the mVRRP backup group.
[UPE-1-vsi-fbb-hsi-ldp]peer 58.71.228.1 track admin-vrrp interface GigabitEthernet 1/1/1.10 vrid 10 pw-redundancy
[UPE-1-vsi-fbb-hsi-ldp]peer 58.71.228.4 track admin-vrrp interface GigabitEthernet 1/1/1.10 vrid 10 pw-redundancy
Configure the VLL PW negotiation mode on the AGG.
[AGG-1 interface gigabitethernet 2/0/0.11
[AGG-1-GigabitEthernet2/0/0.11] vlan-type dot1q 11
[AGG-1-GigabitEthernet2/0/0.11] mpls l2vc 58.71.228.7 1001
[AGG-1-GigabitEthernet2/0/0.11] mpls l2vc 58.71.228.9 1002 secondary
[AGG-1-GigabitEthernet2/0/0.11] mpls l2vpn reroute immediately-switch
